VetFlex 10L Oxygen Concentrator

SKU: AC-ICU-OC10L1

Version 2.0 - October 2026

vetflex.com

hello@vetflex.com

Purpose

The VetFlex 10L Oxygen Concentrator is a stationary medical-grade oxygen generation system built for continuous veterinary use.

Using Pressure Swing Adsorption (PSA) technology with molecular sieve filtration, the system extracts and concentrates oxygen from ambient air. It delivers a continuous supply of 93% ± 3% pure oxygen at flow rates up to 10 liters per minute.

How PSA Works

PSA Process

• Draws in ambient air
• Separates nitrogen using molecular sieve beds
• Delivers concentrated oxygen continuously
• Two-bed system alternates between adsorption and regeneration

Advantages

• 24/7 continuous operation without rest periods
• No high-pressure cylinder storage or handling risks
• On-demand oxygen with no delivery wait
• Compact footprint fits any clinical environment
• Integrates with VetFlex ICU oxygen cages
• Minimal maintenance: annual filter replacement only

Veterinary Applications

• ICU oxygen cage supplementation (VetFlex ICU compatible)
• Post-surgical recovery and anesthesia support
• Emergency stabilization for respiratory distress
• Critical care oxygen therapy
• Neonatal and pediatric oxygen support
• Long-term oxygen therapy for chronic conditions

What's Included

• VetFlex 10L Oxygen Concentrator unit
• 2x intake air filters (pre-installed)
• 1x secondary air filter (pre-installed)
• Power cord
• User manual
• 18-month warranty documentation

Performance

Electrical

Physical

Environmental Requirements

Fire Safety

• Keep at least 10 feet from open flames, sparks, or heat sources
• No smoking in any room where the unit is operating
• Do not use lubricants, grease, or petroleum-based products near the unit
• Do not place oxygen tubing under bedding or flammable materials
• Ensure adequate ventilation at all times

Electrical Safety

• Use only the voltage specified on the rating label (110V/60Hz)
• Connect to a properly grounded electrical outlet
• Do not remove covers while plugged in
• Only qualified technicians should perform internal maintenance
• Do not use extension cords. Plug directly into wall outlet.
• Protect from water and moisture

Operating Safety

• Place on a hard, flat, stable surface only
• Maintain at least 12 inches of clearance on all sides
• Do not place items on top of the unit
• Do not operate without filters installed or while filters are wet
• Keep away from dust, corrosive gases, and strong magnetic fields
• Keep portable RF equipment at least 12 inches away

Placement Guidelines

• Select a clean, well-ventilated area with a hard, flat surface
• Maintain minimum 12 inches clearance on all sides
• Avoid direct sunlight, heat sources, and high-humidity areas
• Position away from patient areas if noise sensitivity is a concern
• Ensure easy access to the power outlet for emergency disconnection

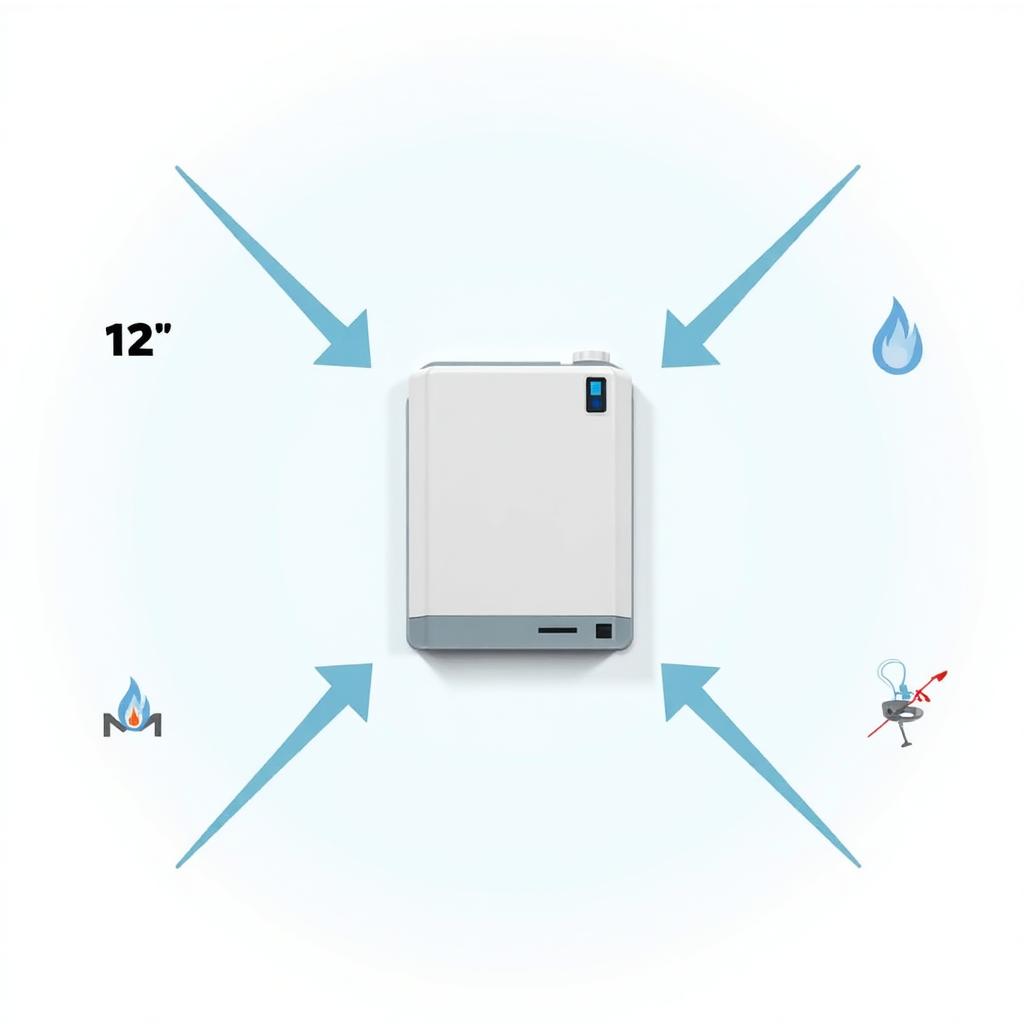

Required Clearance

Maintain at least 12 inches of clearance on all sides for proper airflow.

Initial Setup

1. 1
   Unbox and remove all packing materials
2. 2
   Verify both intake air filters are properly seated
3. 3
   Place on a hard, flat surface with adequate clearance
4. 4
   Connect the power cord to the rear appliance inlet
5. 5
   Plug into a grounded 110V/60Hz wall outlet
6. 6
   If using a humidifier: fill with distilled water to indicated lines
7. 7
   Connect oxygen tubing to the output port
8. 8
   Turn power switch to ON. Green indicator will illuminate.
9. 9
   Allow 5 to 10 minutes to reach rated oxygen concentration
10. 10
    Adjust flow meter to the desired LPM setting

Control Panel Indicators

• P.O. (Green): Power ON
• P.F. (Red): Power failure alarm
• L.P. (Yellow): Low system pressure warning
• H.P./H.T. (Red): High pressure or over-temperature alarm
• H.O₂ (Blue): Oxygen purity at or above 85%
• L.O₂ (Red): Oxygen purity below 85%

Control Panel Reference

Flow Adjustment

1. 1
   Locate the flow control knob on the front panel
2. 2
   Turn counterclockwise to increase, clockwise to decrease
3. 3
   Observe the ball float in the flow meter to set desired LPM
4. 4
   Do not force the knob. Gentle adjustment prevents valve damage.
5. 5
   Maximum recommended flow: 10 LPM

Normal Operation Indicators

• Green power light is ON
• Blue O₂ purity light is ON
• No audible alarms sounding
• Flow meter ball is stable at selected LPM
• Unit runs quietly with steady airflow

Maintenance Schedule

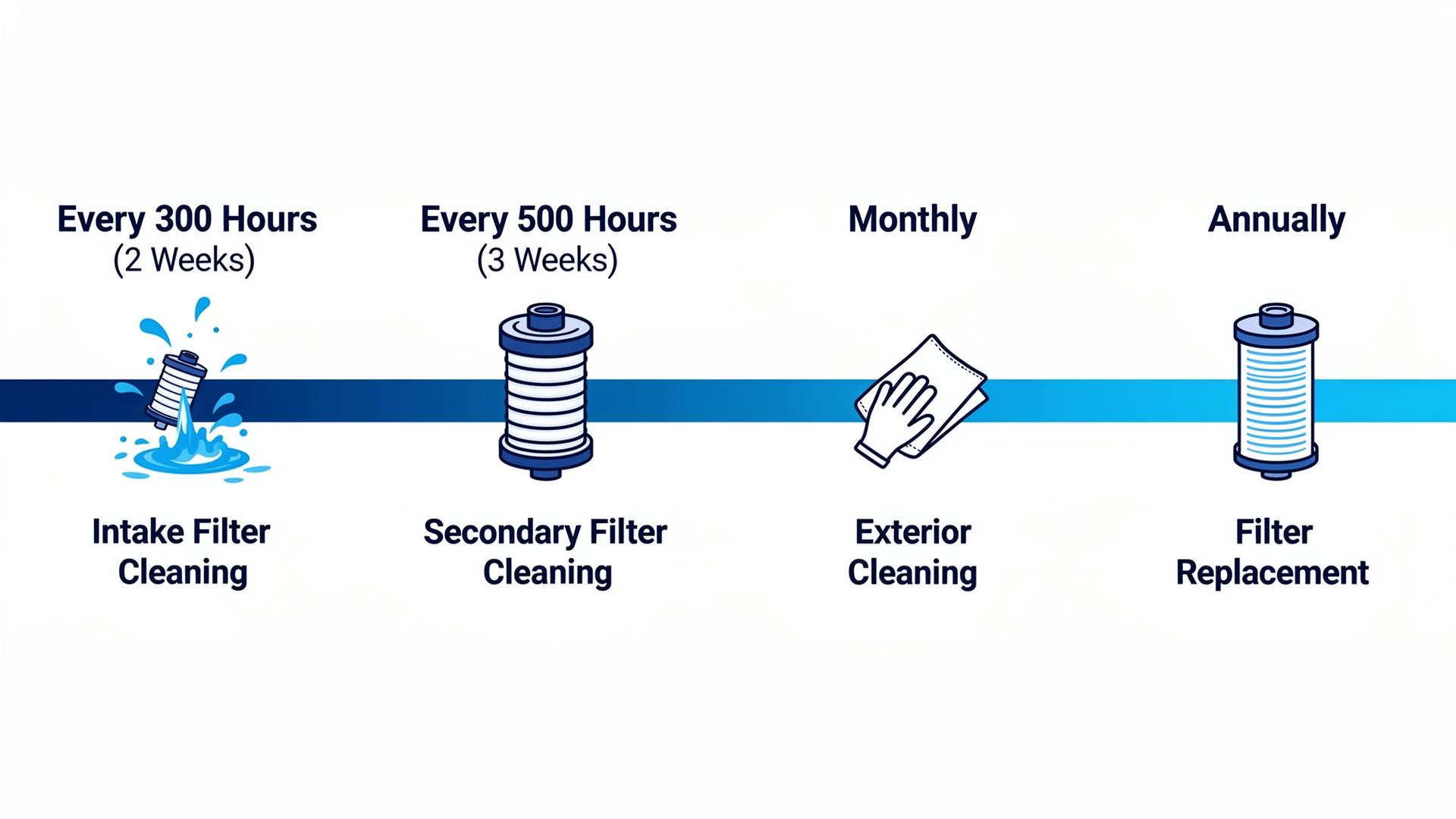

Maintenance Timeline

Recommended maintenance intervals for continuous 24/7 operation.

Cleaning Intake Air Filters

1. 1
   Turn off the unit and disconnect power
2. 2
   Remove both intake air filters from each side
3. 3
   Wash with mild soap and warm water
4. 4
   Rinse thoroughly under clean running water
5. 5
   Shake off excess water and air dry completely
6. 6
   Reinstall once fully dry. Never operate with wet or missing filters.

Cleaning the Secondary Filter

1. 1
   Turn off the unit and disconnect power
2. 2
   Open the top cover and locate the secondary filter
3. 3
   Rotate counterclockwise to remove
4. 4
   Clean with mild detergent and rinse with clean water
5. 5
   Air dry completely before reinstalling
6. 6
   Rotate clockwise to lock back into position

Storage Guidelines

• Clean all filters before storing
• Empty and dry the humidifier completely
• Store in a clean, dry environment (-40°F to 131°F)
• Cover the unit to prevent dust accumulation
• When resuming use, clean filters and perform a full warm-up cycle

Issue / Action

Warranty Coverage

Replacement Parts

• Intake air filter (Part #: GL-01) - 2 required
• Secondary air filter (Part #: GL-02) - 1 required
• Fuse (F6.3AL / 250V)

Contact VetFlex Support

For warranty service, replacement parts, or technical assistance, contact our US-based support team. We prioritize rapid resolution for critical care environments.
